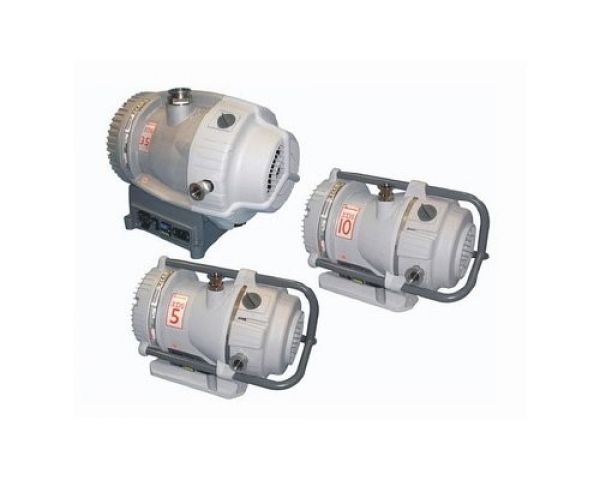

EDWARDS XD 渦卷乾式真空泵浦
 |
| Model | nXDS6i | nXDS10i | nXDS15i | nXDS20i | nXDS35i | |
|
Displacement
50/60 Hz
|
m3/hr | 6.8 | 12.7 | 17.1 | 28 | 43 |
| Ultimate Pressure | mbar/Tor | 2x10-2 | 7x10-3 | 7x10-3 | 3x10-2 | 1x10-2 |
| 1.5x10-2 | 5x10-3 | 5x10-3 | 2.2x10-2 | 8x10-3 | ||
|
Motor rating
50/60
|
W | 260 | 280 | 300 | 260 | 260 |
| Inlet/Exhaust | NW25 | |||||
| Weight | kg | 26.2 | 25.8 | 25.2 | 26.6 | 48 |
